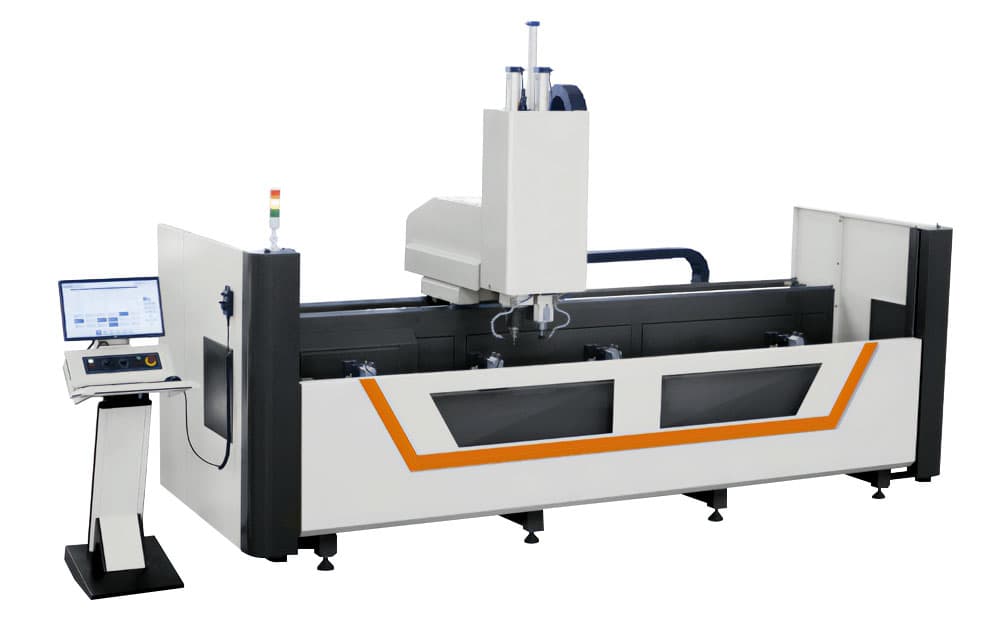

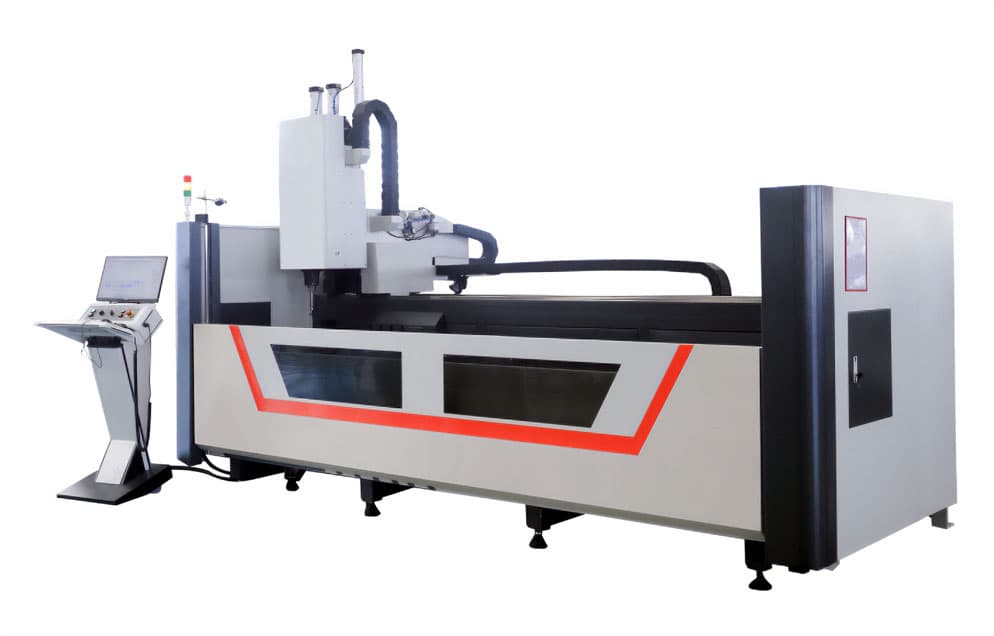

CNC Milling and Drilling Center AW-MDC-3200
Machine Features
- Suitable for CNC drilling and milling of various parts such as aluminum alloy, copper, PVC profiles, and plates.
- High-precision linear guide pairs, ball screws, racks and pinions, and imported servo systems are adopted to ensure stable movement and high positioning and processing accuracy.
- The rotatable table is driven by a servo motor, allowing rotation at any angle between -90°, 0°, and +90°.
- Adopting a double spindle configuration: No. 1 spindle is an 8.0kW high-speed automatic tool-changing electric spindle imported from Italy, offering stable and reliable performance. No. 2 spindle is a drilling electric spindle, which can be equipped with a step drill bit to achieve rapid drilling, saving tool change time and increasing efficiency.

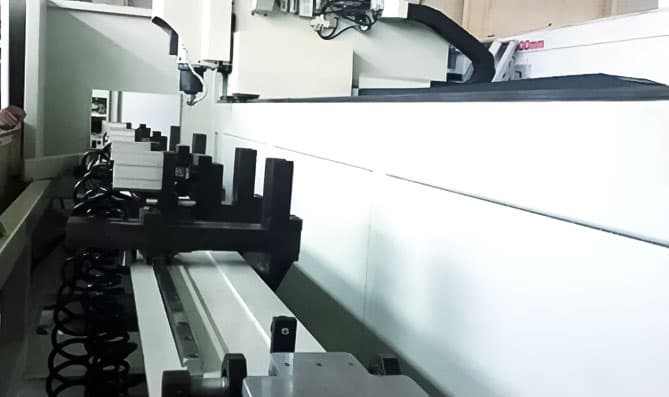

- Each set of fixtures is directly driven by a servo motor, providing fast automatic displacement and quick position avoidance.

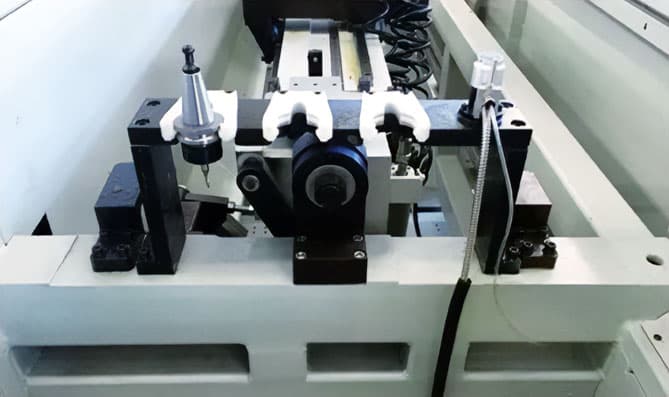

- A four-tool in-line tool magazine enables automatic tool changes for the electric spindle.
- The numerical control system can support online communication with MES to enable automatic loading and unloading by robots.
- Special auxiliary programming software is installed, offering three-dimensional graphical programming and prefabricated multiple element tiles for simple and intuitive programming.
- The semi-closed shield and bottom feeding tray enhance safety and effectively prevent aluminum chip pollution in the working environment, creating a better working space.
- The intelligent numerical control system and the simple, intuitive man-machine interface make operation more convenient and faster.
It can realize the dual processing in two areas for short profile, which
greatly improve the working efficiency.
with good and reliable performance.
Main Technical Parameters
| Item | Specification | |
|---|---|---|
| Working range on Axes | Axis | |
| X | 3200 mm | |
| Y | 450 mm | |
| Z | 350 mm | |
| Moving Speed on Axes | X | 0 ~ 106 m/min |
| Y | 0 ~ 30 m/min | |
| Z | 0 ~ 30 m/min | |
| Positioning Accuracy | ±0.1 mm | |
| Machining Accuracy | ±0.1 mm | |
| Machining roughness | 12.5µm Ra | |
| Max Processing Range | 160×160×3200 mm | |
| 1#Spindle power | 8.0 kW | |
| 2#Spindle power | 1.5 kW | |
| Spindle Max Rev. | 24000 r/min | |
| Spindle Taper | ISO30 | |
| Quantity of Clamp | 4 pcs | |
| Tool magazine capacity | 4 pcs | |
| Cooling system | Micro atomization cooling | |
| Power Supply | 380V / 50HZ | |
| Air Source Pressure | 0.5 - 0.8 MPa | |
| Occupied Area | 4500mm×2300 mm | |
| Weight | 2500 kg | |
