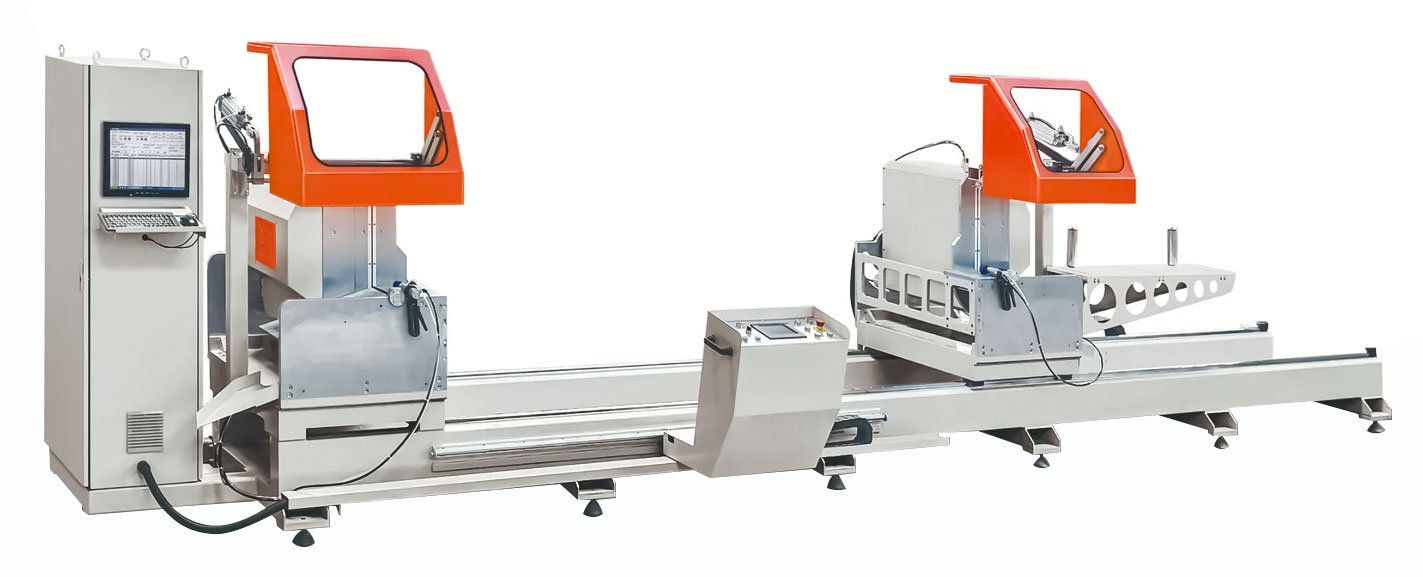

Arbitrary Angle CNC Double Head Cutting Saw AW-AA2H-CNC-6000
Machine Features
- Applicable for arbitrary angle cutting of aluminum windows and doors, curtain wall and all industrial aluminum profile.
- The machine adopts Europe style with neat appearance.
- The control system adopts the new closed-loop system.
- The directly connected blade adopts Lever-swing cutting type.
- The feeding of the blade is driven by air-hydraulic damping cylinder, with smooth cutting.
- The imported control system can ensure the cutting quality.
- Imported sawing blade has very high accuracy to assure cutting surface's smoothness.
- The processing dimension can be directly input; the cutting length can be changed without returning the reference point.
- The airproof device under the worktable has crumbs-clearing effect.
- The following saw cover keeps it working in the clean environment.
- The moveable follow-up supporter can reduce the machine space.
- The profile was clamped by two cylinders in every head, and kept the cutting security.

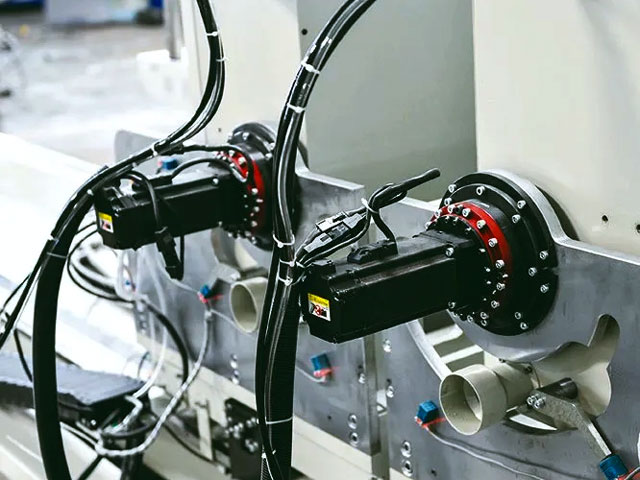

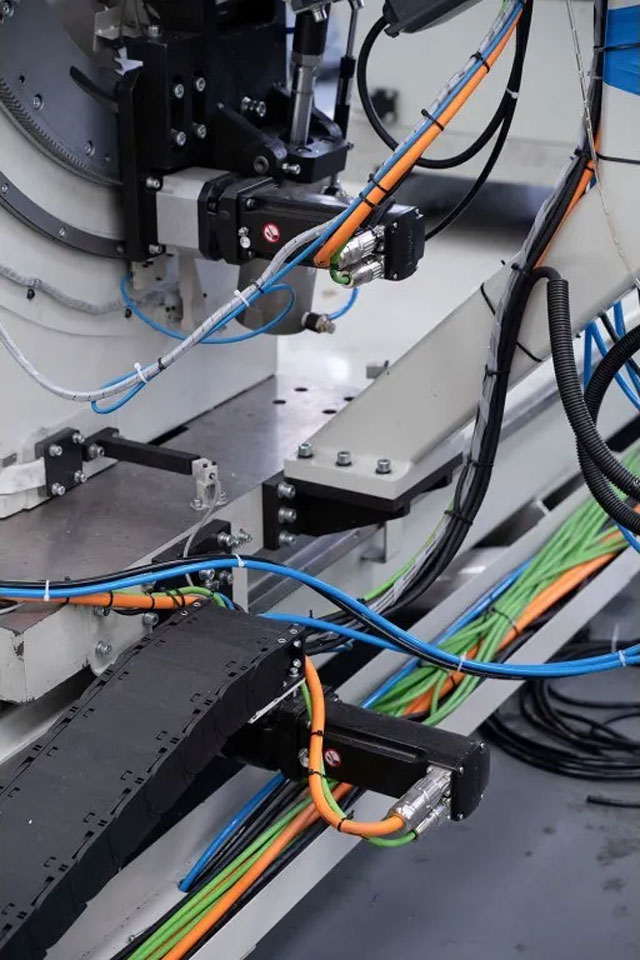

- The servomotor drives the speed reducer and the cutting angle can change from 45° to 157.5°.

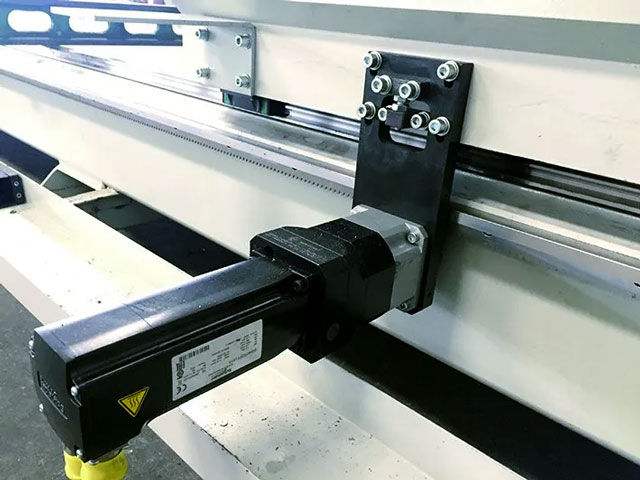

- The saw head uses the gear rack driven by the imported servo motor with fully closed loop configuration, it ensures that the machine fast movement speed and gas high accuracy.

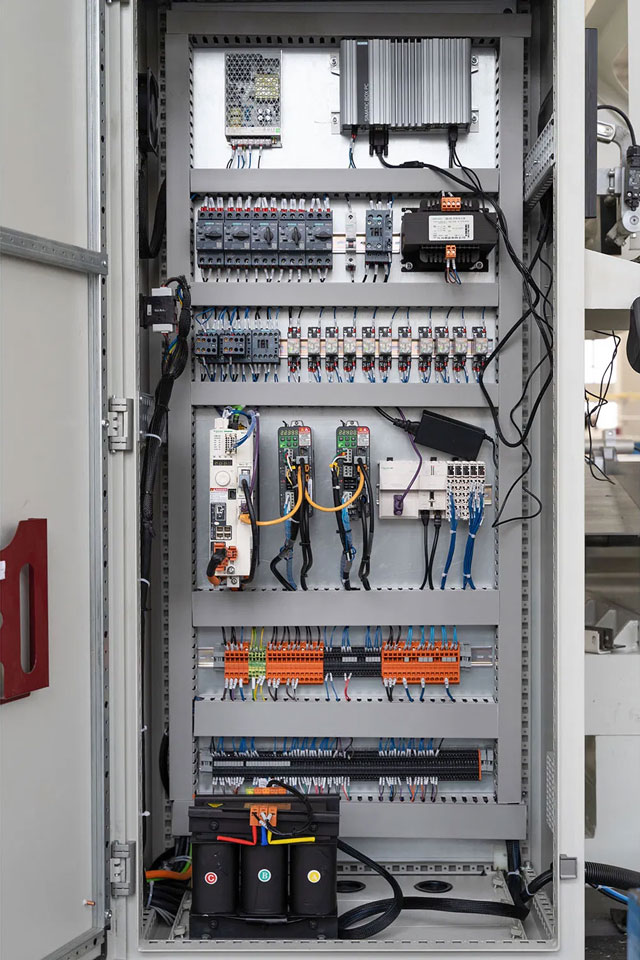

- Equipped with high quality industrial control computer, supporting external data direct lead-in.
- Can automatically complete super long or super short cutting function.
- Optional barcode printer, forming digital factory system.
Main Technical Parameters
| Item | Specification |
|---|---|
| Cutting Motor Power | 2 × 3.5kW at rotary speed 2800 r/min |
| Servomotor Power | 3 × 0.68kW at rotary speed 4050 r/min |
| Blade Specification | Ø600 × Ø30 × 4.8 Z=144 |
| Cutter Feeding Speed | stepless speed regulation 0 ~ 3m/min |
| Cutter Moving Speed Range | 0 ~ 20m/min |
| Cutting Length | 520 - 6000mm at 90° / 820 - 6000mm at 45° |
| Cutting Width | 180mm |
| Cutting Height | 240mm |
| Cutting Angle | any angle in range 45° ~ 157.5° |
| Repeat Locating Length Tolerance | ±0.2mm |
| Cutting Angle Tolerance | ±5′ |
| Cutting Profile Surface Flatness | ≤0.10mm |
| Cutting Profile Surface Roughness | Ra12.5µm |
| Power Supply | 380V 50Hz or customized value |
| Operation Air Pressure | 0.5 - 0.8MPa |
| Air consumption | 60L/min |
| Contour Dimension | 9000 × 2000 × 2000mm |
| Weight | about 2800kg |
Cutting Section Diagram

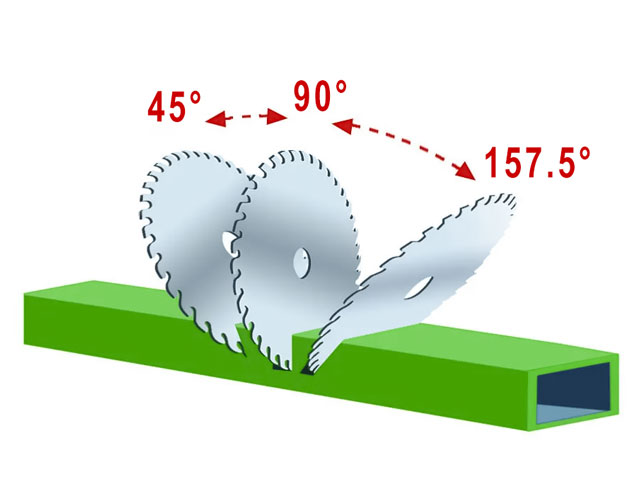

Rotating Angle Range Diagram
Machine Details

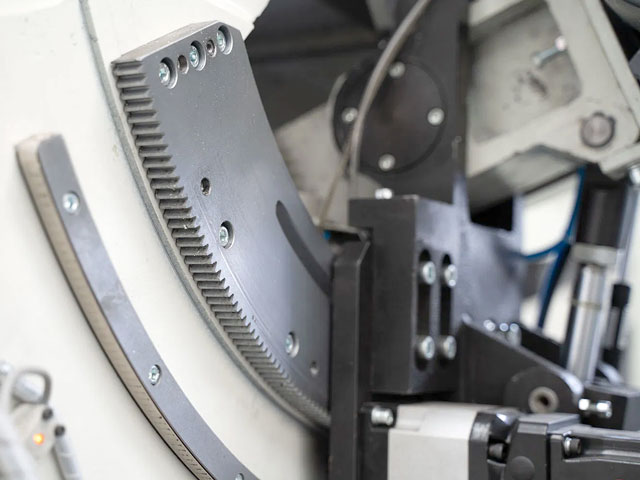

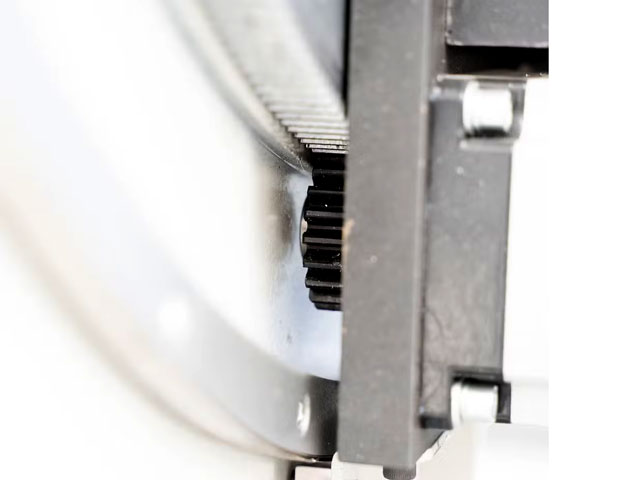

Moveable cutting head is driven by imported servo motor through gear & rack, moving fast, whole closed-loop control, cutting with high precision.
