Industrial Robots
6 Axis Industrial Robots with load capacity of 50-220kg
Family of 50-220kg robots are the fastest, strongest and most precise palletizing robots on the market.
- Universal large-load series robots.
- Long arm span is suitable for many application scenarios.
- Front motor design for easy maintenance.
- Higher energy saving and precision.
- High rigidity body has greater load, higher operation rhythm and precision.
- Autonomous dynamics algorithm ensures strong operation stability.
- Easy to debug and operate.
Industrial Robots Technical Parameters

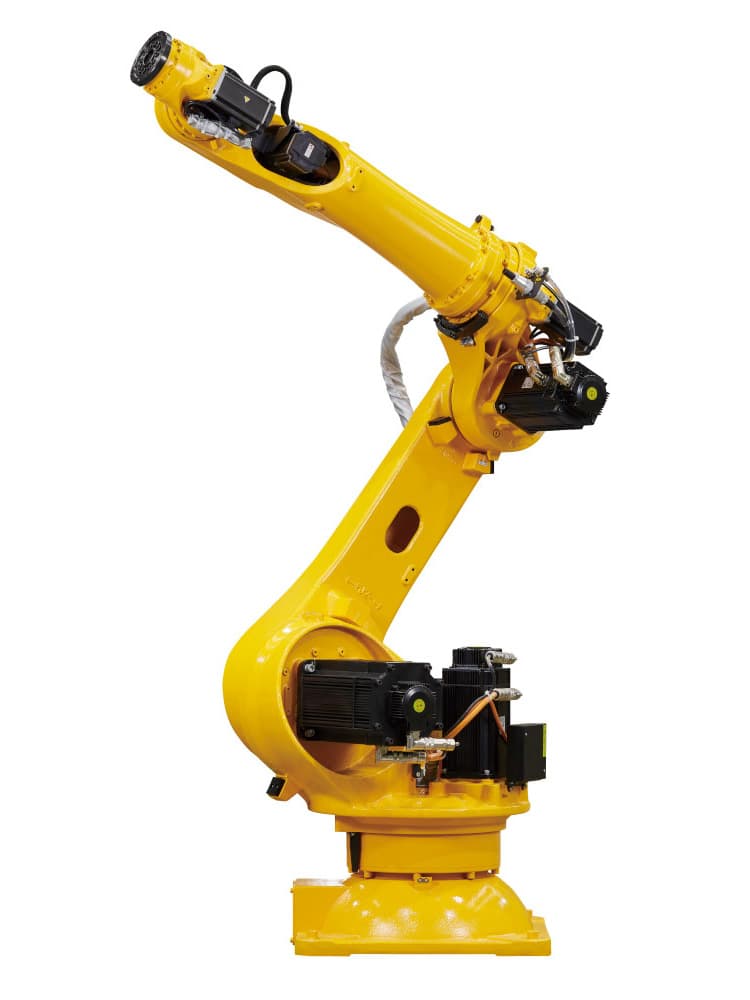

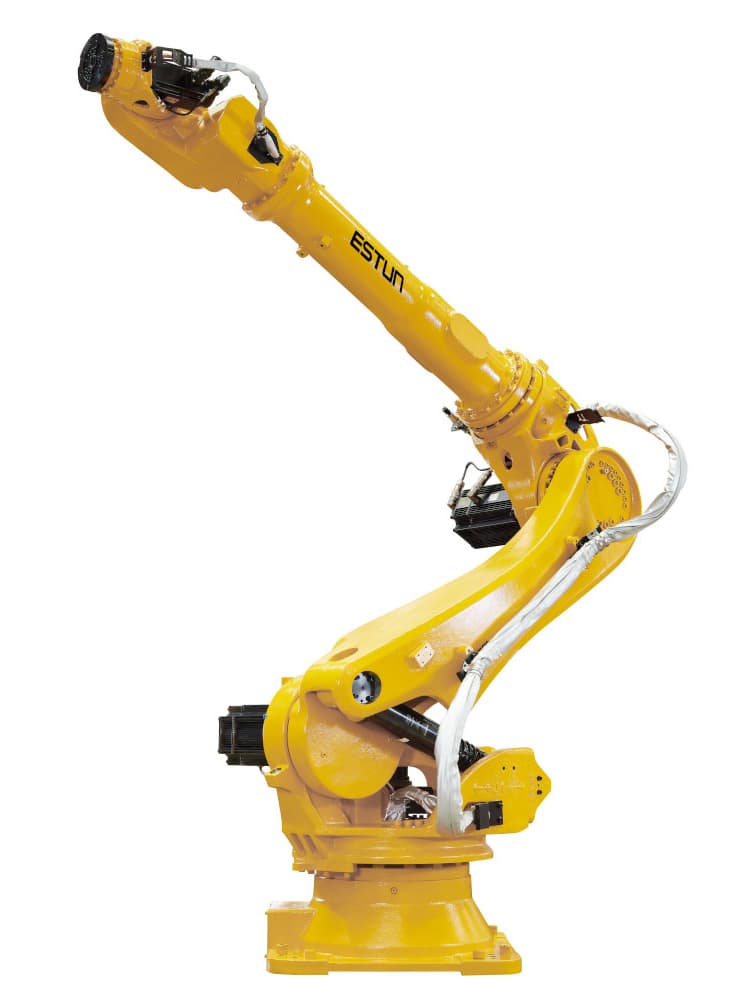

| Item | ER50B-2100 | ER130-3200 | |
|---|---|---|---|
| Maximum Load | 50 kg | 130 kg | |
| Arm Range | 2100 mm | 3200 mm | |
| Repeatability | ±0.08 mm | ±0.1 mm | |
| Working range on Axes | Axis | ||
| 1 | ±180° | ±180° | |
| 2 | -90° ~ +135° | -60° ~ +80° | |
| 3 | -185° ~ +80° | -95° ~ +80° | |
| 4 | ±200° | ±200° | |
| 5 | ±130° | ±125° | |
| 6 | ±360° | ±360° | |
| Maximum speed on Axes | 1 | 172°/s | 120°/s |
| 2 | 119°/s | 110°/s | |
| 3 | 186°/s | 120°/s | |
| 4 | 255°/s | 160°/s | |
| 5 | 254°/s | 175°/s | |
| 6 | 366°/s | 220°/s | |
| Installation method | installation on floor | ||
| Ingress Protection Class | IP54 | ||
| Robot Weight | 530kg | 1120kg | |
